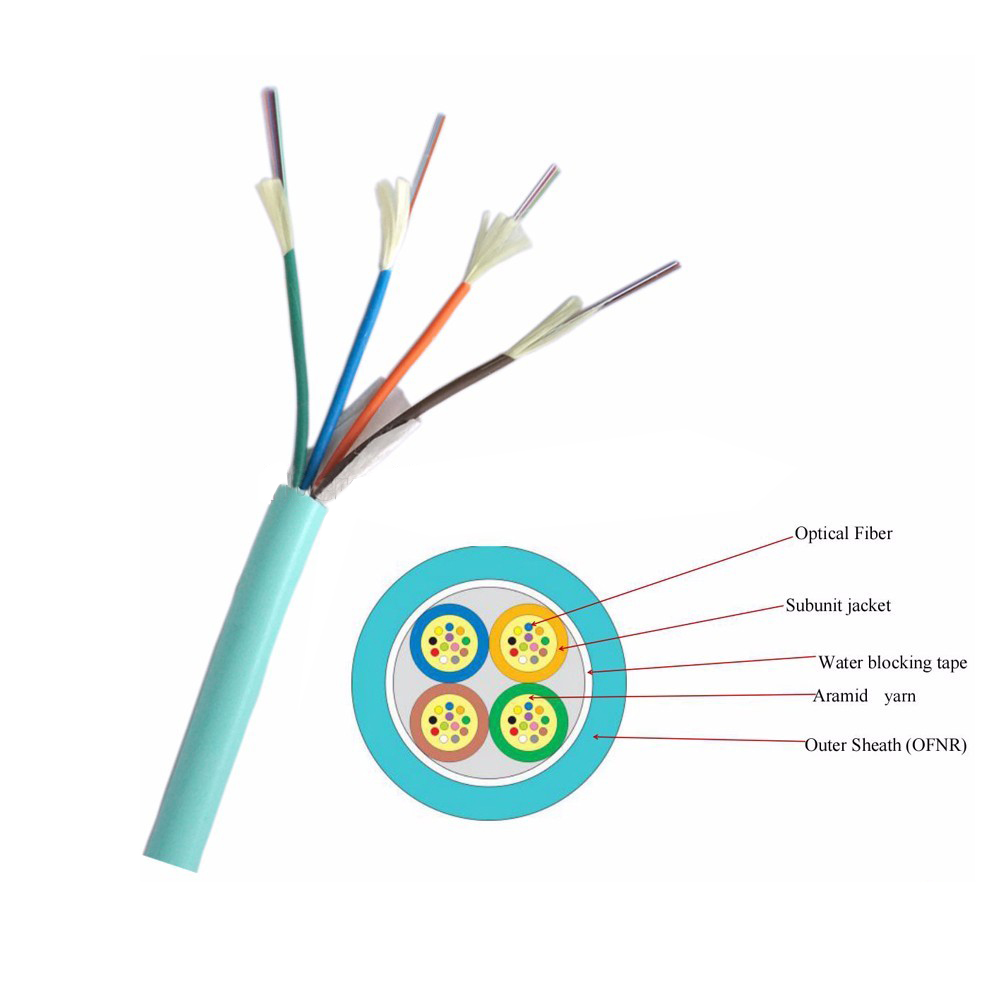

Supply High Quality Indoor Fiber Optic Cable OM3

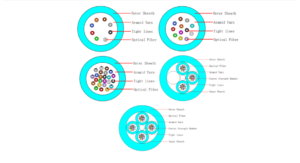

Specification
|
No. of cable
|
8core
|
12core
|
24core
|
36core
|
48core
|
|||
|
Fiber Model
|
OM3
|
|||||||
|
Tight lines
|
Material
|
PVC/LSZH
|
||||||
|
Thickness（±0.03）mm
|
0.32
|
|||||||
|
Diameter（±0.06）mm
|
0.9
|
|||||||
|
Center Strength Member
|
Material
|
FRP
|
||||||
|
Diameter（±0.1）mm
|
—
|
—
|
—
|
0.5
|
0.5
|
|||
|
Strength Member
|
Material
|
Aramid Yarn
|
||||||
|
Inner Sheath
|
Material
|
PVC/LSZH
|
||||||
|
Diameter（±0.1）mm
|
—
|
—
|
—
|
0.8
|
0.8
|
|||
|
Colour
|
Aqua
|
|||||||
|
Outer Sheath
|
Material
|
PVC
|
||||||
|
Thickness（±0.1）mm
|
0.9
|
1.0
|
1.0
|
1.5
|
1.5
|
|||
|
Colour
|
Aqua
|
|||||||
|
Cable Diameter（±0.2）mm
|
5.8
|
6.2
|
8.5
|
15.1
|
15.1
|
|||
|
Cable Wetght（±5）kg/km
|
31
|
41
|
60
|
238
|
235
|
|||
|
Attenuation
|
850nm
|
dB/km
|
≤2.5
|
|||||
|
1300nm
|
≤0.7
|
|||||||
|
Bandwidth
|
850nm
|
MHz.km
|
≥3500
|
|||||
|
1300nm
|
≥500
|
|||||||
|
Allowable Tensile Strength
|
Short Term
|
N
|
660
|
660
|
660
|
1320
|
1320
|
|
|
Long Term
|
200
|
200
|
200
|
660
|
660
|
|||
|
Allowable Crush Resistance
|
Short Term
|
N/100mm
|
1000
|
1000
|
1000
|
1500
|
1500
|
|
|
Long Term
|
200
|
200
|
200
|
300
|
300
|
|||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
||||||
|
Under Maximum Tension
|
20.0×Cable-φ
|
|||||||
|
Temperature range
（℃） |
Installation
|
-20~+60
|
||||||
|
Transport&Storage
|
-40~+70
|
|||||||
|
Operation
|
-40~+70
|
|||||||
Fiber optic cable price is as reference, may changed expensive or cheaper caused by dollar exchange rate and other cost.
*Price is based on 40HQ order, you can choose different type to mix in one container.
*MOQ:2km.
*If your order is different from 40HQ, please contact us to get best price.
