Supply Outdoor 2 core Ftth Drop Cable, Single mode, with Self-Supporting Steel Wire

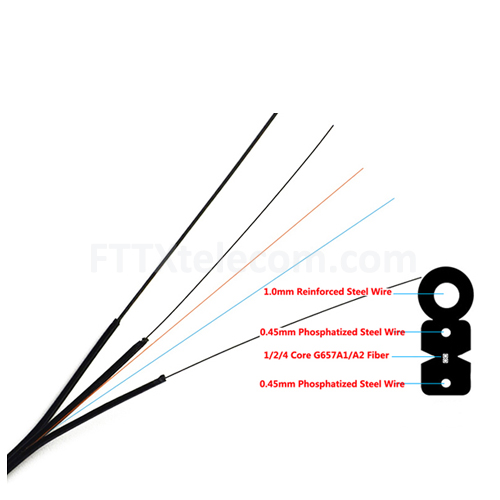

*Below is Self-supporting fiber optic drop cable GJXCH. Its fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Last this cable is completed with black or white LSZH sheath.
*This optical drop cable is used to overhead between buildings to link equipment components, such as Cable Television(CATV), Media
Converter, Active Device Termination, Premise Installations etc.
Specification
|
Product name
|
Fiber Optical Ftth Drop Cable
|
|||
|
Fiber Number
|
1 core, 2core, 4core/fibers
|
|||
|
Fiber Type
|
single mode, G652D/ G657A1
|
|||
|
Sheath
|
Black PE Jacket
|
|||
|
Package
|
2km/drum
|
|||
|
Tensile Strength
|
Short Time 600N, Long Time 300N
|
|||
|
Crush Resistance
|
Short Time 2200N, Long Time 1000N
|
|||
|
Operation Temperature
|
-40℃~+70℃
|
|||
|
Diameter
|
(4.0±0.2) x (6.2±0.2)mm
|
|||
|
Sheath
|
LSZH
|
|||
|
Color
|
Black or White
|
|||
|
Installation
|
outdoor to indoor
|
|||
Package Details
2-3km / export wooden drum, size:80*60*60cm
Fiber Optic Cables price is as reference, may changed expensive or cheaper caused by dollar exchange rate and other cost.
*Price is based on 40HQ order, you can choose different type to mix in one container.
*MOQ:2km.
*If your order is different from 40HQ, please contact us to get best price.
