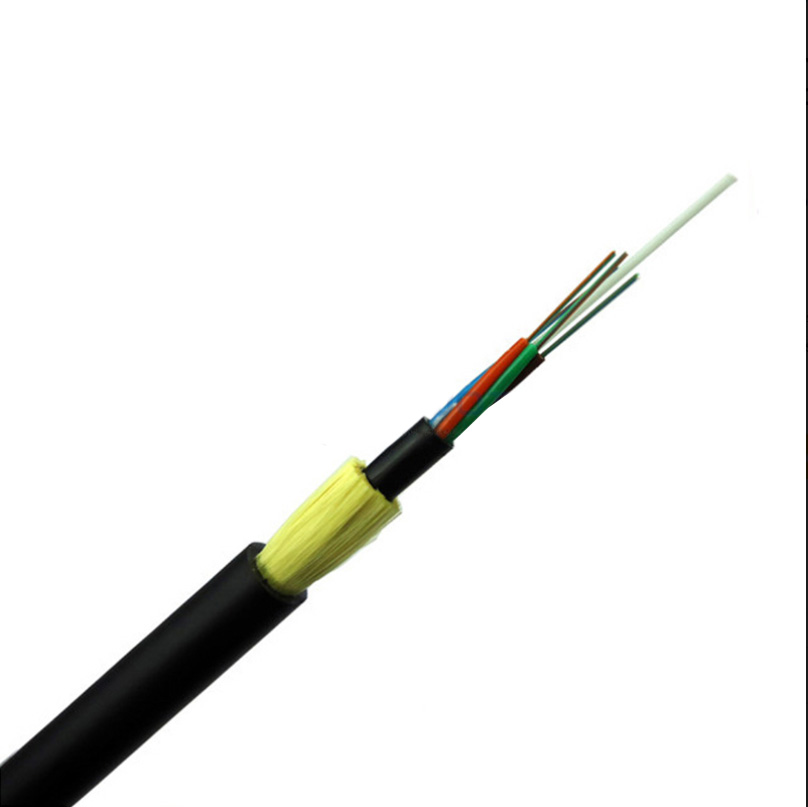

Fiber Optic Cables Manufacturer Supply High Quality ADSS Cable, Double Jacket, Single Mode, 4core to 144core
- Can be installed without shutting off the power
- Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 31kV
- Light weight and small diameter reducing the load caused by ice and wind and the load on towers and upholder
- Large span lengths and the largest span is over 1000m
- Good performance of tensile strength and temperature
- The design life span is 30 years
Specification
|
Product name
|
ADSS All Dielectric Self-supporing Aerial Cable ,Double Jacket
|
|||
|
Fiber Number
|
2-144 fibers
|
|||
|
Fiber Type
|
single mode, G652D
|
|||
|
Sheath
|
Black PE Jacket
|
|||
|
Package
|
2-4km/drum
|
|||
|
Max. fiber
|
Up to 144fiber
|
|||
|
Tensile Strength
|
Short Time >2200N, Long Time >1100N
|
|||
|
Crush Resistance
|
Short Time >2200N, Long Time> 1100N
|
|||
|
Installation
|
aerial
|
|||
|
Cable Span
|
200m-500m
|
|||
Package Details
2km / export wooden drum, size:100*100*70cm
3km/ export wooden drum, size:110*110*70cm
4km/ export wooden drum, size:125*125*70cm
Fiber Optic Cables price is as reference, may changed expensive or cheaper caused by dollar exchange rate and other cost.
*Price is based on 40HQ order, you can choose different type to mix in one container.
*MOQ:2km.
*If your order is different from 40HQ, please contact us to get best price.
