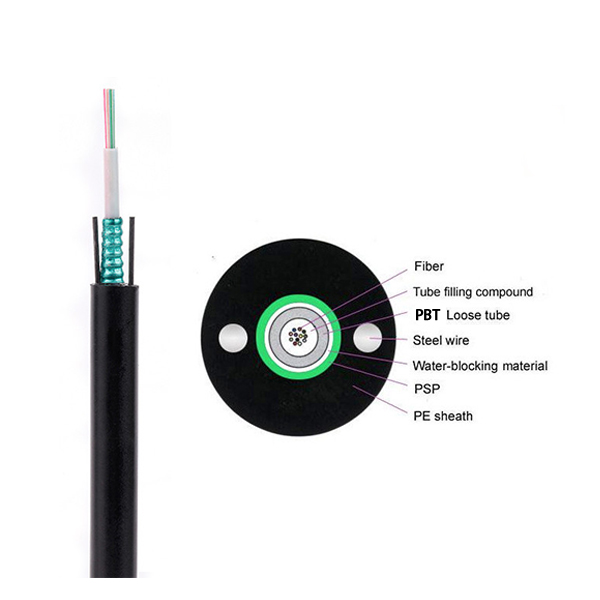

- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- PSP enhancing moisture-proof
- Two parallel steel wires ensure tensile strength
- Small diameter, light weight and friendly installation
- Long delivery length
Specification
| No. of cable | 2~8 | 10~12 | 14~24 | ||
| Fiber Model | G.652D | ||||
| Strength Member | Material | Steel Wire | |||
| Diameter（±0.05）mm | 0.8 | 0.8 | 0.8 | ||
| Loose Tube | Material | PBT | |||
| Diameter（±0.06）mm | 2.1 | 2.4 | 2.8 | ||
| Thickness（±0.03）mm | 0.32 | 0.35 | 0.4 | ||
| The Max.Core NO./Tube | 8 | 12 | 24 | ||
| Water Blocking layer（Material） | Water Blocking Tape | ||||
| Armoring | Material | Steel Strip | |||
| Thickness（±0.03）mm | 0.25 | ||||
| Outer Sheath | Material | MDPE | |||
| Thickness（±0.2）mm | 2.0 | ||||
| Cable Diameter（±0.2）mm | 7.9 | 8.1 | 8.5 | ||
| Cable Weight（±5）kg/km | 60 | 63 | 68 | ||
| Min. bending radius | Without Tension | 10.0×Cable -φ | |||
| Under Maximum Tension | 20.0×Cable -φ | ||||
| Temperature range
（℃） |
Installation | -20~+60 | |||
| Transport&Storage | -40~+70 | ||||
| Operation | -40~+70 | ||||
Package Details
2km / export wooden drum, size:100*100*70cm
3km/ export wooden drum, size:110*110*70cm
4km/ export wooden drum, size:125*125*70cm
